The TCS-6075-MOD is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TCS-6075-MOD is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnaissance and tactical surveillance. The latest generation silent and Auto-NUC sensor is at the base of the TCS-6075-MOD. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety. The TCS-6075-MOD is fully dust- and waterproof, meets and exceeds modern standards. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.

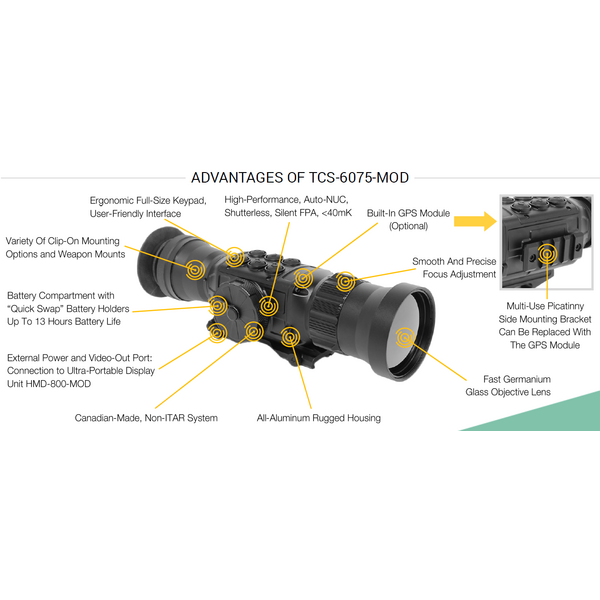

ADVANTAGES OF TCS-6075-MOD
- Ergonomic Full-Size Keypad, User-Friendly Interface.
- Interchangeable Rear Optics
- High-Performance, Auto-NUC, Shutterless, Silent FPA, <40mK
- Smooth and Precise Focus Adjustment
- Fast Germanium Glass Objective Lens
- All-Aluminum Rugged Housing
- Canadian-Made, Non-ITAR System
- Battery Compartment with "Quick Swap" Battery Cartridges: Up to 13 Hours Battery Life.
- External Power, Video-Out and Communications Port: to connect to Ultra-Portable Display Unit HMD-800-MOD, Advanced MTAR-HUD system, or the Laser Rangefinders QRF-4500, QRF-1200, and CRF-1200A
| MAIN OPTICAL PARAMETERS | |
| Optical Magnification Clip-on | 1X |
| Objective Lens System | 75mm |
| Field of View | 8.3° x 6.2° |
| Focusing Range | 3m .. Infinity |
| THERMAL SENSOR & ELECTRONICS | |
| FPA Type | Uncooled, a-Si, Shutterless, Silent, Auto-NUC |
| FPA Resolution and Pitch | 640 x 480, 17μm |
| FPA Sensitivity (NETD) | <40mK |
| FPA Refresh Rate | 50Hz |
| Digital Zoom | 1X, 2X, 4X, 8X |
| Internal Display | Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600 |
| Imaging Modes | Monochrome (White-Hot / Black-Hot) and Multiple colour Palettes |
| ENHANCED VISION & TACTICAL FEATURES | |
| Digital Passive Stadiametric Rangefinder (SRF) | YES |
| Digital Detail Enhancement Feature (DDE) | YES |
| Wide Dynamic Range Feature (WDR) | YES |
| Stow Safety Feature (SSF) | YES |
| Shot-Initiated FOV Feature (SIF) | Built-In Adjustable Shock Sensor |
| Integrated 9-Axis Absolute Orientation HUD | Yes: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass | YES |
| Pitch/Roll/Azimuth Indications | YES |
| Digital Video Recorder with Real-Time Stamp | YES |
| Powering Options & Consumption | |
| Accepted Batteries | 4 (Four) AA Alkaline / Lithium / Rechargeable |
| Universal Port | Video-Out, Remote contorl and External Power (4VDC .. 15 VDC) |
| Battery Life on 4x AA Lithium | Up to 13 Hours |
| MECHANICAL & ENVIRONMENTAL PARAMETERS | |
| Dimensions | 225 x 75 x 67mm |
| Weight | 812.25 grams |
| Environmental Protection | IP67, Nitrogen-Purged Housing |
| Operating Tempterature | -40°C .. +50°C |
