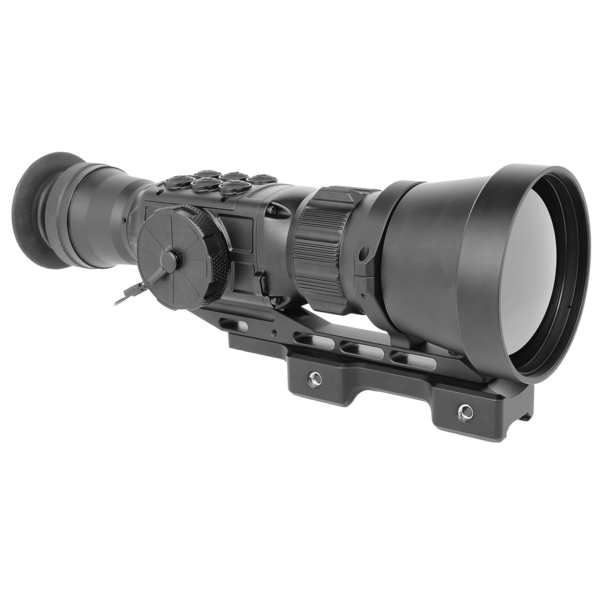

The TCS-6100-MOD is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TCS-6100-MOD is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnassance and tactical surveillance. The latest generation silent and Auto-NUC sensor is at the base of the TCS-6100-MOD. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety. The TCS-6100-MOD is fully dust- and waterproof, meets and exceeds modern standards. It is a robust, reliable tool for long-term, intensive use in any envrionment, in any lighting or weather conditions.
ADVANTAGES OF TCS-6100-MOD
- Interchangeable Rear Optics
- Ergonomic Full-Size Keypad, User-Friendly Interface
- High-Performance, Auto-NUC, Shutterless, Silent FPA, <40Mk
- Battery Compartment with "Quick Swap" battery holders up to 13 hours battery life.
- External power, Video-out and communications Port: to connect to Ultra-portable Display unit HMD-800-MOD, advnaced MTAR HUD system, or the Laser Rangefinders QRF-4500, QRF-1200 and CRF-1200A.
- Canadian Made, Non-ITAR System
- All-Aluminum Rugged housing
- Fast Germanium Glass Objective Lens
- Heavy-Duty MAK-Mount (Picatinny)
| MAIN OPTICAL PARAMETERS | |
| Optical Magnification Clip-On | 1X |
| Objective Lens System | 100mm |
| Field of View | 6.2° x 4.7° |
| Focusing Range | 5m .. Infinity |
| THERMAL SENSOR & ELECTRONICS | |
| FPA Type | Uncooled, a-Si, Shutterless, Silent, Auto-NUC |
| FPA Resolution and Pitch | 640 x 480, 17μm |
| FPA Sensitivity (NETD) | <40mK |
| FPA Refresh Rate | 50Hz |
| Digital Zoom | 1X, 2X, 4X, 8X |
| Internal Display | Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600 |
| Imaging Modes | Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes |
| ENHANCED VISION & TACTICAL FEATURES | |
| Digital Passive Stadiametric Rangefinder (SRF) | YES |
| Digital Detail Enhancement Feature (DDE) | YES |
| Wide Dynamic Range Feature (WDR) | YES |
| Stow Safety Feature (SSF) | YES |
| Shot-Initiated FOV Feature (SIF) | Built-In Adjustable Shock Sensor |
| Integrated 9-Axis Absolute Orientation HUD (Heads-up Display) | Yes: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass | YES |
| Pitch/Roll/Azimuth Indications | YES |
| Digital Video Recorder with Real-Time Stamp | YES |
| MECHANICAL & ENVIRONMENTAL PARAMETERS | |
| Dimensions | 262 x 80 x 78mm |
| Weight | 1114 grams |
| Center Scope Height From the Rail | 62 mm (2.44 inches) |
| Environmental Protection | IP67, Nitrogen-Purged Housing |
| Operating Temperature | -40°C .. +50°C |
| POWERING OPTIONS & CONSUMPTION | |
| Accepted Batteries | 4 (Four) AA Alkaline / Lithium / Rechargeable |
| Universal Port | Video-Out, Remote Control and External Power (4VDC - 15VDC) |
| Battery Life on 4x AA Lithium | Up to 13 Hours |
