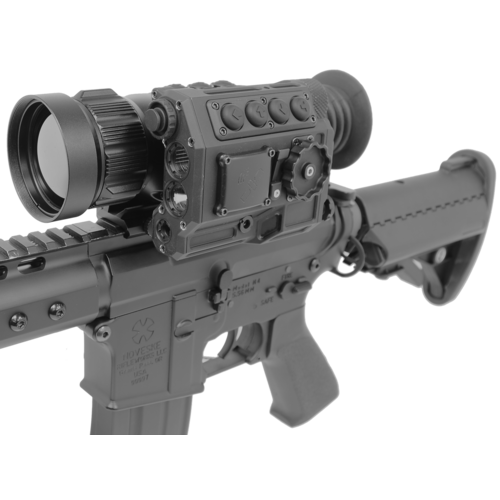

GSCI Advanced Photonics TWS-6100 Thermal Scope

  • Available for Special Order
0.00 Excl. tax
Contact - [email protected] to inquire about pricing/special order...More information
103-5725 Vedder Road
Flat Rate $12.50 Shipping
LEAF Discount Available
Contact Us For Special Orders!
Product information

    The TWS-6100-MOD is the advanced professional-grade thermal weapon sight for aiming and engagement on a wide variety of firearms at medium- to and long-range distances. Ideal for medium or large-size caliber rifles, machine guns, whether singe or repetitive shooting. It is also a great tool for reconnaissance and tactical serveillance. The latest generation silent and Auto-NUC sensor is at the case of the TWS-6100-MOD. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety. The TWS-6100-MOD is fully dust- and waterproof, meets and exceeds modern standards. It is a perfect tool for long-term, intensive use in any envrionment, in any lighting or weather conditions.



    ADVANTAGES OF TWS-6100-MOD

    • Ergonomic Full-Size Keypad, User friendly interface.
    • High-performance, Auto-NUC, Shutterless, Silent FPA, <40mK
    • Built-in GPS Module (optional)
    • Distortion-Free, comfortable, long eye-relief eyepiece and a full size color AMOLED display for precise aiming and shooting.
    • Battery compartment with "quick swap" battery holders up to 13 hours battery life.
    • Smooth and precise focus adjustment.
    • Fast Germanium Glass Objective lens.
    • All-Aluminum Rugged housing.
    • Canadian-Made, Non-ITAR System.



    MAIN OPTICAL PARAMETERS
    Optical Magnification 4X
    Objective Lens System100mm
    Field of View6.2° x 4.7°
    Focusing Range5m .. Infinity
    Diopter Adjustment Range -6 .. +4
    Eye Relief Min. 50mm



    THERMAL SENSOR & ELECTRONICS
    FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC
    FPA Sensitivity and Pitch640 x 480 17μm
    FPA Sensitivity (NETD)<40mK
    FPA Refresh Rate 50Hz
    Digital Zoom1X, 2X, 4X, 8X
    Internal DisplayFull Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600
    Imaging Modes Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes



    ENHANCED VISION & TACTICAL FEATURES
    Digital Passive Stadiametric YES
    Digital Detail Enhancement FeatureYES
    Wide Dynamic Range FeatureYES
    Stow Safety FeatureYES
    Shot-Initiated FOV Feature (SIF) Built-In Adjustable Shock
    Integrated 9-Axis Absolute Orientation HUD Yes: 3-Axis Sensors - Magnetometer, Accelerometer
    Integrated Compass YES
    Pitch/Roll/Azimuth Indications YES
    Digital Video Recorder with Real-Optional
    GPS Module Optional



    MECHANICAL & ENVIRONMENTAL PARAMETERS
    Dimensions 240 x 80 x 78mm
    Weight987.70 grams
    Environmental Protection IP67, Nitrogen-Purged Housing
    Operating Temperature -40°C .. +50°C
